RACE / OFF-ROAD USE ONLY

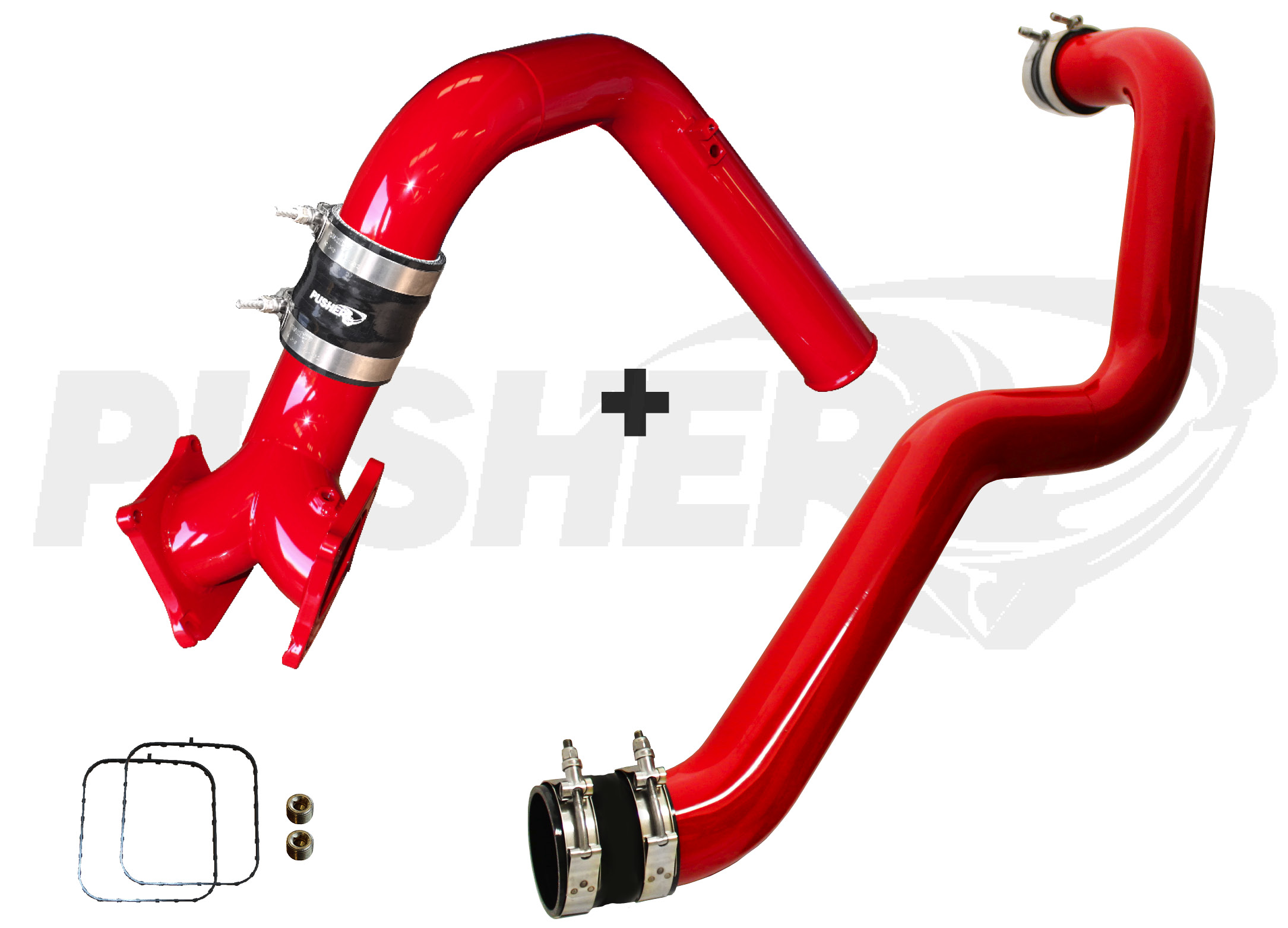

Pusher SuperMax Intake System & Pusher Max 3" Driver-side Charge Tube for 2006-2010 Duramax LBZ/LMM Trucks

$864.98
SKU:
PGD0610SKT_N2
Weight:
22.00 LBS
tooltip|ports:
This product features 1/8" FNPT threaded ports for auxiliary sensors / injectors. Each port comes with a anodized aluminum plug so you can seal off ports not in use. The majority of our customers select the standard 2-port option.
tooltip|powder-coat:
All steel products must be coated prior to installation. See “Powder Coating 101” under Articles for more information. Custom colors quoted upon request.
Current stock: 0
Description

Description

This product is not emissions compliant. Off-road use only.

The Pusher SuperMax Intake System eliminates the anemic post intercooler charge plumbing and two piece y-bridge while the Pusher Max 3" Driver-side Charge Tube replaces the equally anemic driver-side charge tube that connects the outlet of the turbo to the intercooler.

The ultimate way to save $35 and upgrade all of the anemic factory charge tubes, upper manifold, and two piece intake bridge to an unobstructed 3" flow path.

Compatible and highly recommended with the Pusher Max Compound Turbo System.

Pusher SuperMax Intake System

  • The Pusher SuperMax Y-Bridge is a one piece Patent Pending true "Y" design that properly guides air into each cylinder head.

  • This system is 100% constructed of 3" mandrel bent tubing which supplies your engine with 93% more air and follows a 6% shorter flow path than the OEM parts being replaced.

  • Fully TIG welded with precise settings to produce beautiful welds and optimal penetration without impacting air flow.

  • CNC machined flanges for flawless mounting to your Duramax engine.

  • These parts are compatible with the Pusher Max Compound Turbo System for the LBZ trucks.

  • Included are all of the HD 4-ply silicone couplers, stainless T-bolt clamps, o-ring gaskets, hardware, and even wire loom for a complete install - if you have previously not done an EGR delete, you will need a EGR Cooler Bypass Kit as well.

  • Additional options include various powder coat colors and extra ports.

Pusher Max 3" Driver-side Charge Tube

  • The Pusher Max 3" Driver-side Charge Tube is engineered to provide your engine with 86.4% more air via mandrel bent tubing that follows a 9% shorter and more efficient flow path and eliminates the problematic curved factory coupler at the intercooler inlet.
  • Fully TIG welded with precise settings to produce beautiful welds and optimal penetration without impacting air flow.
  • Includes heavy duty 4-ply silicone couplers and full stainless T-bolt clamps.
  • Eliminates the problematic curved factory coupler at the inter cooler inlet.
  • Does not rub on the driver-side inner fender or any other engine bay components like other designs tend to do.
  • Additional options include various powder coat colors.
Reviews

Reviews (36)

Allison Jul 4th 2021

Clamps are tight

Only reason this didn’t get a 5 star review is because I had to stretch the clamps before being able to get them around the boots. Pipes and boots are all very well made, fit in the truck great and look amazing!

Nick Meyer Mar 1st 2021

High Quality Products!

I ordered the Y bridge and intercooler piping kit for my duramax. It arrived in a very timely manner and is very clear that the quality is top notch! I was however missing the two 1/8" NPT plugs, but a couple bucks at the hardware store and that was fixed. The only way I think the kit could be better is to include new y bridge bolts. On the LMM there is one bolt that is too long to replace without taking the turbo loose. Even one bolt that was 5mm shorter would be huge. Again, from the hardware store it was cheap and easy. 5 stars would definitely order again.

Additional Info

Additional Info

SKU:
PGD0610SKT_N2
Weight:
22.00 LBS
tooltip|ports:
This product features 1/8" FNPT threaded ports for auxiliary sensors / injectors. Each port comes with a anodized aluminum plug so you can seal off ports not in use. The majority of our customers select the standard 2-port option.
tooltip|powder-coat:
All steel products must be coated prior to installation. See “Powder Coating 101” under Articles for more information. Custom colors quoted upon request.
