Pusher HD 3" Cold Side Charge Tube for 2011-16 Ford F250/350 6.7L Powerstroke w/ Throttle Valve Adapter

$319.99 - $384.99
SKU:
PFP1116BTA
Weight:
11.00 LBS
tooltip|powder-coat:
All steel products must be coated prior to installation. See “Powder Coating 101” under Articles for more information.
tooltip|Ports:
This product features 1/8" FNPT threaded ports for auxiliary sensors / injectors. Each port comes with an anodized aluminum plug so you can seal off ports not in use. The majority of our customers select the standard no port option.
Current stock: 0
Description

Description

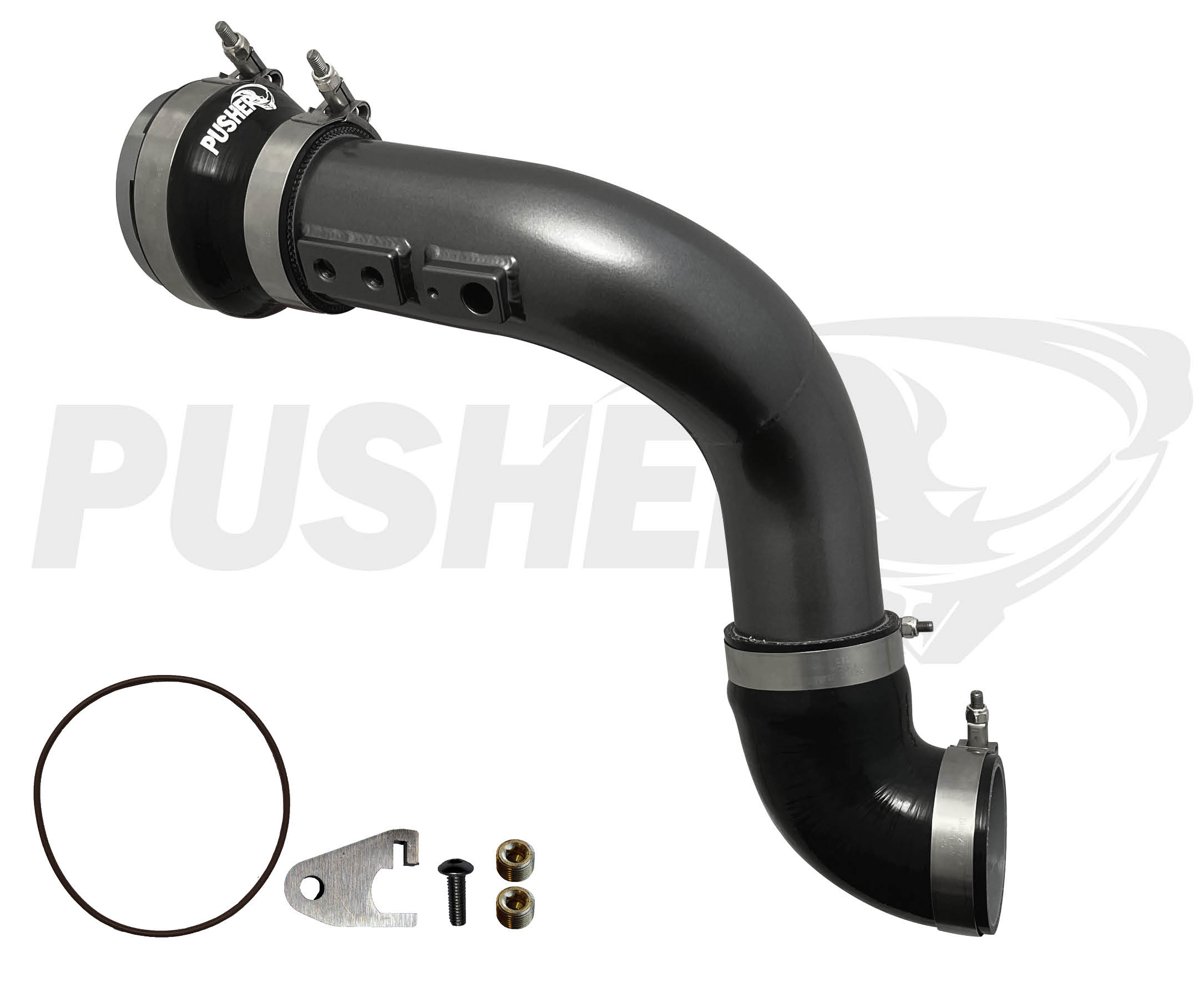

Emissions Compatible: The Pusher HD 3" Cold Side Charge Tube with Throttle Valve Adapter for 2011-16 Ford F250/350 6.7L Powerstroke

The Pusher HD 3" Cold Side Charge Tube with Throttle Valve Adapter replaces the failure prone OEM plastic charge tube with a fully machined, mandrel bent, and TIG welded assembly to fix the problem for good. This is the go to setup for shops and truck owners alike looking for the highest quality solution for an OEM tuned truck.

Intercooler Compatibility: This product was designed to work with the factory intercooler, and as such will work with aftermarket intercoolers that mimic the factory inlet / outlet locations. If you have an aftermarket intercooler that differs from that, please call for compatibility.

  • Replaces the restrictive failure prone plastic factory cold side charge tube
  • Fully TIG welded 3" mandrel bent steel tubing with machined IAT sensor port and two auxiliary 1/8" NPT ports.
  • Features optimum routing for best fitment
  • Includes a fully machined 6061-T6 throttle valve adapter that is anodized in our signature titanium finish for superior corrosion control Includes all new HD silicone connections and full stainless t-bolt clamps Proven to hold compound turbo system boost levels
  • Tested for over two years with Pusher's North American dealer network to ensure this is the best charge tube available
  • Additional options include various powder coat colors, and extra ports.

What’s in the box?

(1) FP11XXBT | Pusher 3" Cold Side Charge Tube
(1) FP11XXTVA | Pusher 3" Throttle Valve Adapter
(1) PSR_3.75-3 | Pusher Silicone Reducer, Black 5-Ply
(1) FP1116S90 | Pusher Intercooler Outlet Coupler
(3) TC_3 T-Bolt Clamp for 3" Silicone Couplers
(1) TC_3.75 | T-Bolt Clamp for 3.75" Silicone Couplers, Stainless Steel
(1) FP1114TVA | FP1114TVA O-Ring
(1) FP1116IAT_HD | Intake Air Temperature Sensor Bracket
(1) M5 x 08 x 10mm Button Head
(Optional) ⅛" NPT Port Plug | 1/8" NPT Port Plug (If purchased port option)

Reviews

Reviews (18)

randy Dec 18th 2023

ford 6.7 cold side charge tube

wishing the oring fit was a bit tighter as i have seen in other kits

Sean Z Oct 18th 2023

Pusher pipe kit

I ordered the sinister pipe kit and quickly realized that the pusher pipe kit is a lot more efficient than the sinister kit due to the fact that the pusher pipes have the throttle delete option which is a lot cooler and way more efficient than the sinister pipe kit! Never will order anyone else’s pipe kit again besides pusher ! ?

Additional Info

Additional Info

SKU:
PFP1116BTA
Weight:
11.00 LBS
tooltip|powder-coat:
All steel products must be coated prior to installation. See “Powder Coating 101” under Articles for more information.
tooltip|Ports:
This product features 1/8" FNPT threaded ports for auxiliary sensors / injectors. Each port comes with an anodized aluminum plug so you can seal off ports not in use. The majority of our customers select the standard no port option.
