RACE / OFF-ROAD USE ONLY

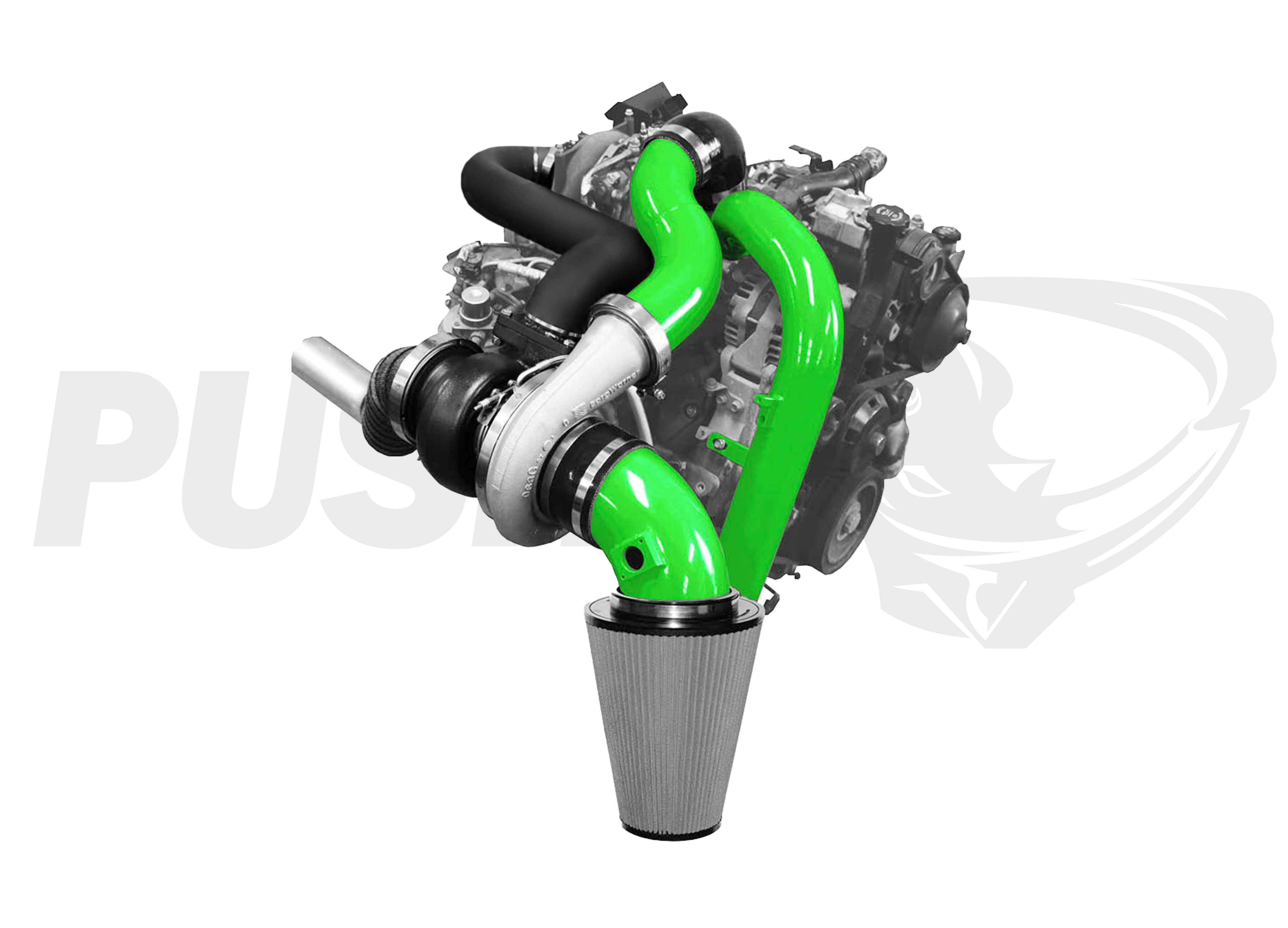

Pusher Max Compound Turbo System for 2004.5-2005 Duramax LLY Trucks

$3,150.00
SKU:
PGD0405GBS_N
Weight:
100.00 LBS
tooltip|powder-coat:
All steel products must be coated prior to installation. See “Powder Coating 101” under Articles for more information. Custom colors quoted upon request.
tooltip|would-you-like-to-add-a-filter-sock:
Protect your air filter from contamination with our water and dust resistant filter sock. Pop in on when you need extra protection, or leave it on daily. Rinses clean easily.
Current stock: 0
Description

Description

This product is not emissions compliant. Off-road use only.

Click to read: The 101 on Compound Turbo Systems: Our FAQs Answered

The Pusher Max Compound Turbo System was designed and tested with the vision of producing the best value kit on the market that could with stand environments from stock power daily driven trucks to over 1000HP drag and off road race trucks.

Pusher Max Compound Turbo System for 2004.5-2005 Duramax LLY Trucks

    • Compatible with most Borg Warner S400 frame chargers and Garrett chargers
    • CNC machined and laser cut flanges for flawless mounting to your Duramax engine
    • Fully TIG welded with precise settings to produce beautiful welds and optimal penetration without impacting air flow.
    • The overall design and location of all components allows easy access and installation
    • Base kit includes 3" Pusher Max HD Charge Tube that properly supports the factory y-bridge at over 70 PSI of boost
    • Can be optioned with Pusher SuperMax Y-Bridge
    • 3.5" intermediate charge pipe and Garrett turbo inlet
    • O-ring seal at Garrett turbo inlet flange
    • 5" Cold Air Intake with large inverted cone filter
    • The Intermediate Exhaust Pipe (IEP) is coated standard with 2000F capable Cerakote. It is routed so no modifications need to be made to existing "low pressure" A/C lines and is hydro-formed to smoothly transition and match the S400 turbine inlet
    • Aluminum coolant overflow tank included and color matched
    • 4" down pipe with Patent Pending smooth flow flange. Installs without relocating the factory fuel filter housing or A/C dryer
    • All fittings and oil/water lines are premium quality from well known manufactures
    • Heavy duty 4-ply silicone couplers and full stainless t-bolt clamps at every boosted connection
    • Extreme duty turbo mount
    • Includes CCV reroute kit
    • S400 charger is placed in the optimal location for minimal impact to passenger side plastic inner fender and for optimal routing of every component in the system
    • Included is every nut, bolt, hose, clamp, and even wire loom for a beautiful install
    • Various powder coat colors available - all colors that don't show a lead time are usually in stock and ship same or next day



      Read Diesel Army's analysis of Pusher's LBZ Compound System

here

    .
Reviews

Reviews (3)

Clay H. Mar 4th 2021

Pusher turned my rock into a rocket!

Got a compound turbo kit from Pusher for my 2004 LB7 Duramax. From the time I unpacked it, it was apparent that these guys pay attention to detail! The kit was incredibly well packaged and arrived without a scratch! The instructions could not have been more thorough and although it was seemingly a huge undertaking, to my surprise, it went amazingly well and fairly quickly for a novice mechanic. My hopes were for a decent pull rig and maybe a slightly quick daily driver.... and ÒWOWÓ , completely different beast! Still has great driving characteristics but puts your ass in the seat when you get on it and pulls like a beast!! So happy with the purchase that IÕve referred other whoÕve been super happy with the results as well. Great Job Pusher!

Corby Chadwick Jul 12th 2018

Street billet S475 compound turbo kit

Best in the industry, only company with a true split Y-bridge between the heads
